2 axle Box Van semi trailer
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Tare Weight | 8200kg | |||
| Overall Length | 12400mm | |||
| Overall Width | 2480mm | |||
| Payload | 35000kg | |||

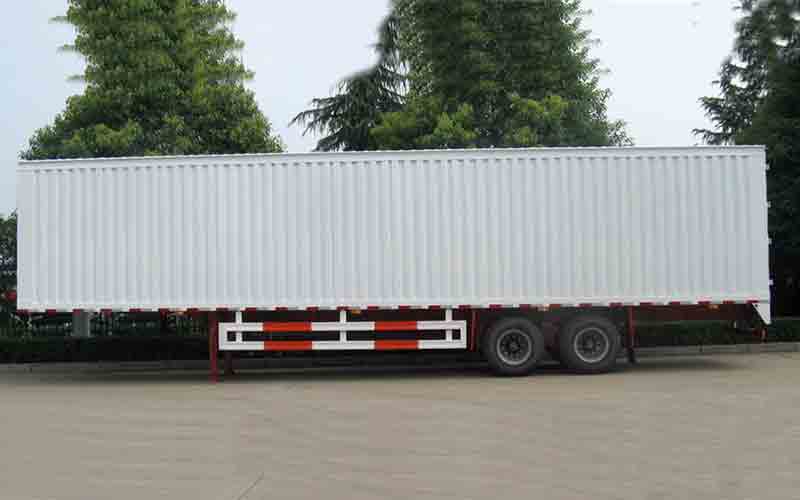

| Photo for reference. Final products can be made according to exact requirements | ||||
| SPECIFICATIONS | ||||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |||
| Axle | 2 axles | |||
| FUWA brand 13 ton, BPW Brand is optional. | ||||
| Suspension | Heavy duty mechanical suspension | |||
| Floor | 3mm checker plate | |||
| Leaf Spring | Mechanical suspension | |||
| King Pin | JOST brand 2” Bolt-in King Pin | |||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
| Wheel Rim | 9.00-22.5 steel wheel rim, 9 pieces including one spare | |||
| Tire | 12R22.5 tubeless tire, 9 pieces including one spare tire. | |||
| Spare Tire | One set of spare tire including a carrier | |||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||
| Box Van body | 12m*2.5m*2.3m. Q235A high tensile strength steel | |||
