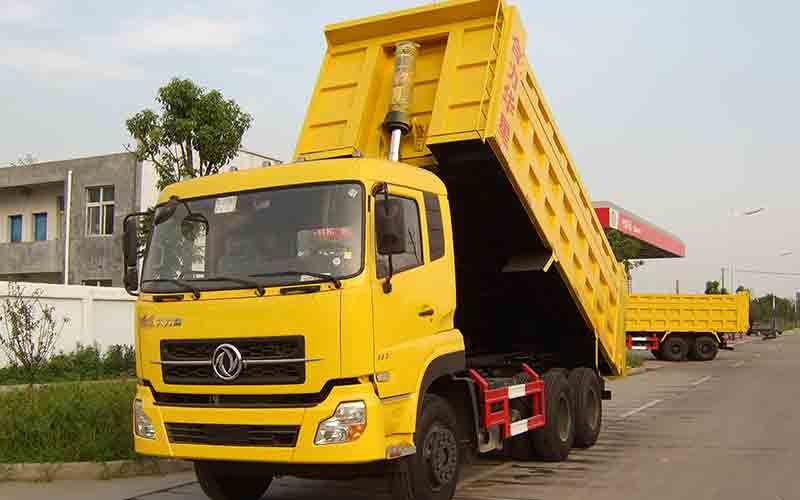

Dongfeng 6X4 Tipper Truck
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Dongfeng 6X4 Tipper Truck | ||
| Chassis
parameters |
Overall dimensions | 8200×2500×3450 mm |
| Gross weight | 25000kg | |
| Curb weight | 11910kg | |
| Rated payload | 12960kg | |
| Suspension F/R | 1500/1450mm | |
| Wheel base | 3800+1450mm | |
| Drive type | 6*4 | |
| Number of axles | 3 | |
| Number of Spring leafs | 10/12 | |
| Tire specification | 12.00R20 | |
| Number of Tires | 10 | |
| Allowable passengers in cab | 3 | |
| Engine | Engine model | YC6M340-33 |
| Type of fuel | Diesel | |
| Displacement/power | 9839ml/340hp | |
| Emission standard(TAS) | EURO 3 | |
| Tipper body | Material | 16Mn high intensity steel |
| Thickness | Side board 6mm, bottom 8mm | |
| Dimension | 5800×2300×1150 mm | |
| Tipping type | Front hydraulic tipping | |
